Power Supply with CE for EU Market

12V5A03-800x800

12V5A02-800x800

12V5A01-800x800

12V5A04-800x800

Feature:

1.100% Brand new 100V – 240V AC to for DC power Adapter Charger

2.For Low Power Mini PC, SMD LED Light or LCD Monitor or CCTV

3.Input: 100V-240V 50/60Hz

4.Output: DC 12V 5A, max 65W, voltage adjustment rate +-5%, mVp-p<1%, response time <= 3S

5.Out put adaptor jack size : 5.5mm  x  2.5-2.1mm Compatible

6.The adapters Connector  inside positive (+)  outside  negative (-)

7.Power Supply with LED indicator

8.Defensive function: inbuild Short-circuits protection, overcurrent protection, and overvoltage protection function.

9.Working temperature: 0-40C, 10% to 90% RH

10:Storage tempreture: -20-85C, 10% to 90% RH

11.EMC: Meet UL/CUL, PSE, TUV/GS, CCC, SAA, BSI, CE, RoHS and other certification

12.Insulation and voltage resistance, 3000Vac 60S 10mA

13.Leakage current: max 0.25mA

14.MTBF: 50000H(MIL-HDBK-21 standard, full load, 25C)

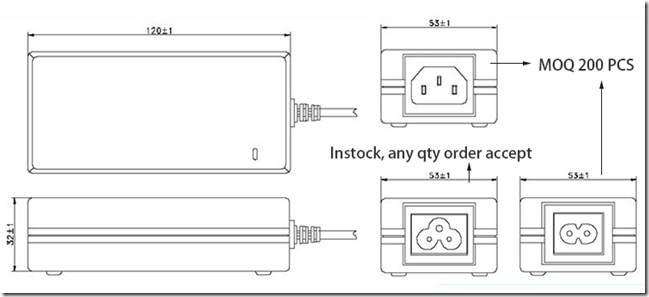

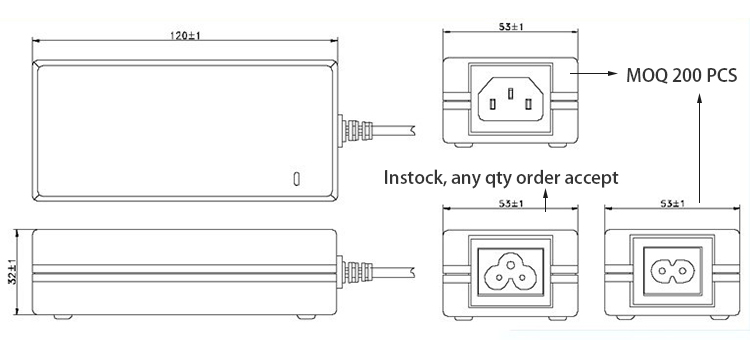

15.Dimension: 120*55*32mm

16.Length of the cable: About 110CM

17.Package: 50 pcs per carton, carton size 450*375*175mm, GW: 25kg/Carton
