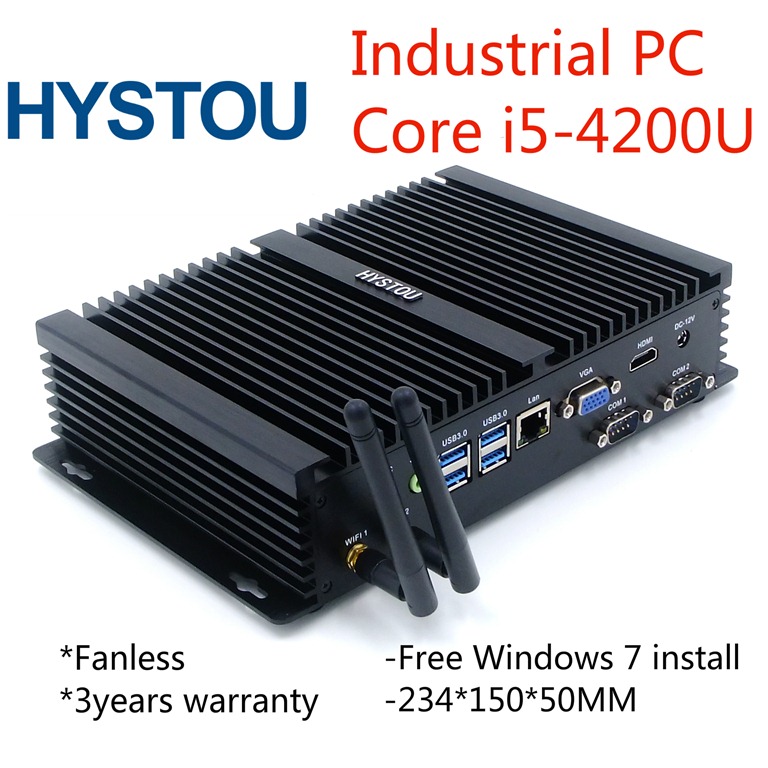

Industrial computer i5-4200u become more and more widely used in industrial machine,mini size makes it more acceptable all over the world.

Slim case only 235*183*45mm,which have COM ports and USB ports,support dual display(HDMI+VGA and dual disk.

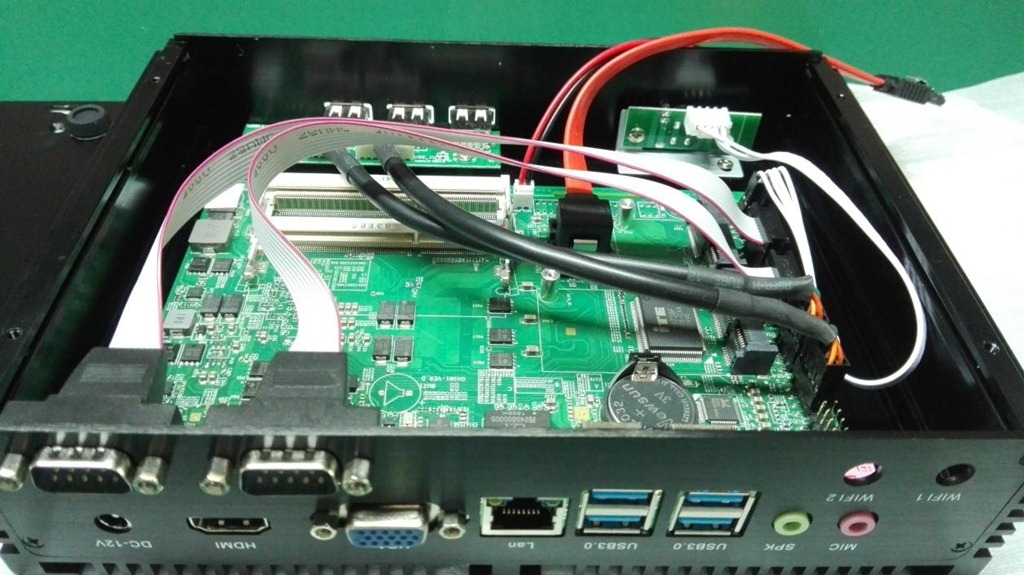

From the above picture we can know that this mini industrial computer hhave 2 COM ports,1 DC IN,1HDMI,1VGA,1LAN,4USB3.0,1SPK,1MIC,2 WiFi antennas ports.

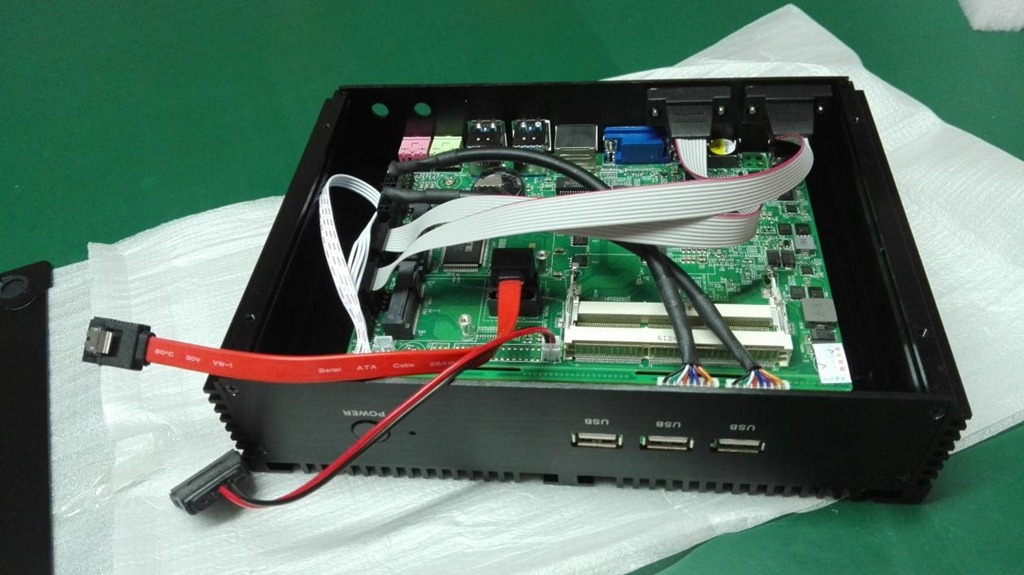

Then we come to the back side which have 3USB2.0 and SW(switch).

Some customer ask what many storage I can install?And the channel numbers? Can I add extra HDD? Don’t worried,let’s solve these problem one by one.

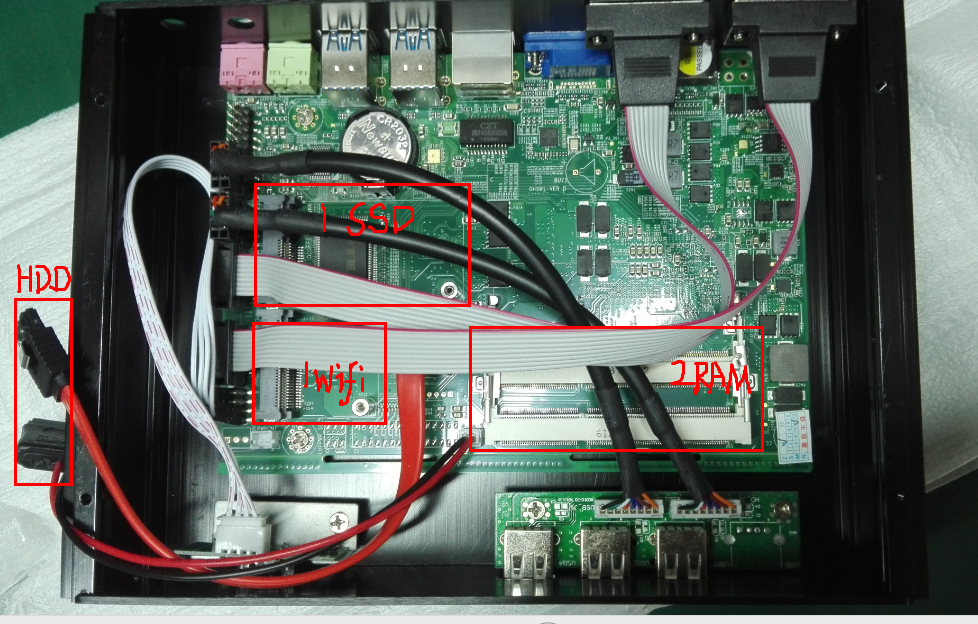

Look this i5-4200u motherboard,（1）there’s only one slot,so you can only insstall one MSATA or Laptop memory storage,we have 16G/32G/64G/128G/256G/512G/1RB SSD choices for you.

（2）this motherboard only have half-high WiFi module(we’ll mention the whole-high WiFi module in our next article,this wifi module is include bluetooth,they are in the same module.

（3）on the left you can see two red cable,which is connect one 2.5 inch HDD to the motherboard,and this HDD can be fixed on the back of the cover.

（4）on the right,we can see two channel which is RAM(memory) channel,we now have 2G/4G/8G in stock,so you can add 16GB(2*8G) RAM in this computer.

Finally,we can fix the computer with screws,then hang on the wall or back of the computer directly as long as you aim at the hole with fixture.
