HYSTOU new arrival product Fanless mini pc i7-7500u(3M Cache,2.50GHz~3.10GHz),size 235*185*45mm,colour:black.
Specification：
| Processor | CPU | Intel Core i7-7500u |
| Clock speed | 2.7 GHz | |
| Max Turbo Frequency | 3.5 GHz | |
| TDP | 7.5W | |
| # of Cores | 2 | |
| # of Threads | 4 | |
| Cache | 4MB | |
| Memory | Max Memory Size | 32 GB |
| Memory Types | DDR4-2133, LPDDR3-1866, DDR3L-1600 | |
| Memory Channels | 2 | |
| Memory Channels | 34.1 GB/s | |
| Graphics | Processor Graphics | Intel® HD Graphics 620 |
| Graphics Base Frequency | 300 MHz | |
| Graphics Max Dynamic Frequency | 1.05GHz | |
| OpenGL* Support | 4.4 | |
| DirectX* Support | 12 | |
| Intel® Quick Sync Video | Yes | |
| Intel® InTru™ 3D Technology | Yes | |
| Intel® Clear Video HD Technology | Yes | |
| I/O Specifications | Display Port | 1*HDMI+1*DP |
| USB port | 4*USB 3.0, 1* USB 2.0
1*SD card port |
|
| Lan Port | 1* Realtek RJ 45 10/100/1000Mbps lan port,
2*WiFi antennas |
|
| Audio | Standard 3.5 Audio input and output | |
| Power and Working Environment | Power Input | DC100-240V AC/50-60Hz |
| Power Output | DC 12V/5A~6A | |
| Style | External power adapter mode | |
| Consumption | 28W | |
| Noise | Fanless System no Noise | |
| Temperature | Unknown to 100°C | |
| Others | Package | Neutral color box size 31.5*26*8 CM |
| Computer Size | 235*185*45MM | |
| Cabinet material | Brushed Aluminum Alloy (Rugged surface) | |
| Net Weight | 2.1kg | |
| Gross Weight | 2.7kg |
Feature:

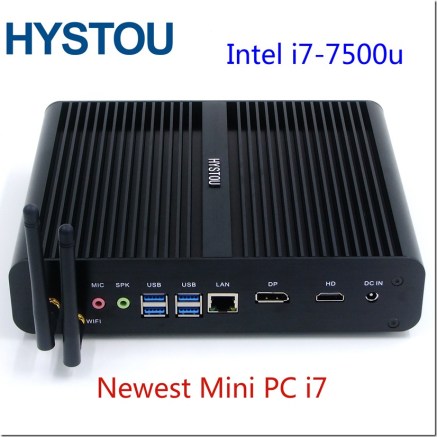

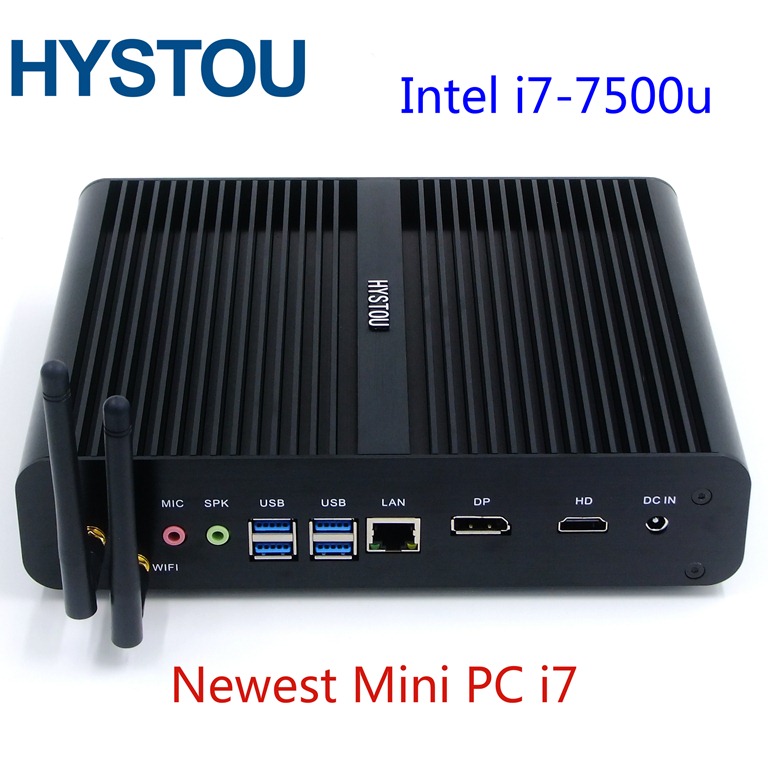

Front of the case:2 antennas,1 Mic,1Spk,4USB3.0,1Lan,1DP,1DMI,1DC IN,4*usb3.0

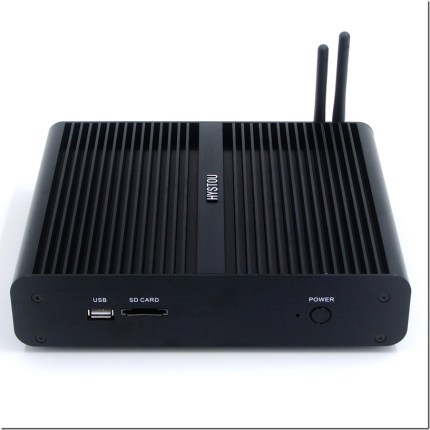

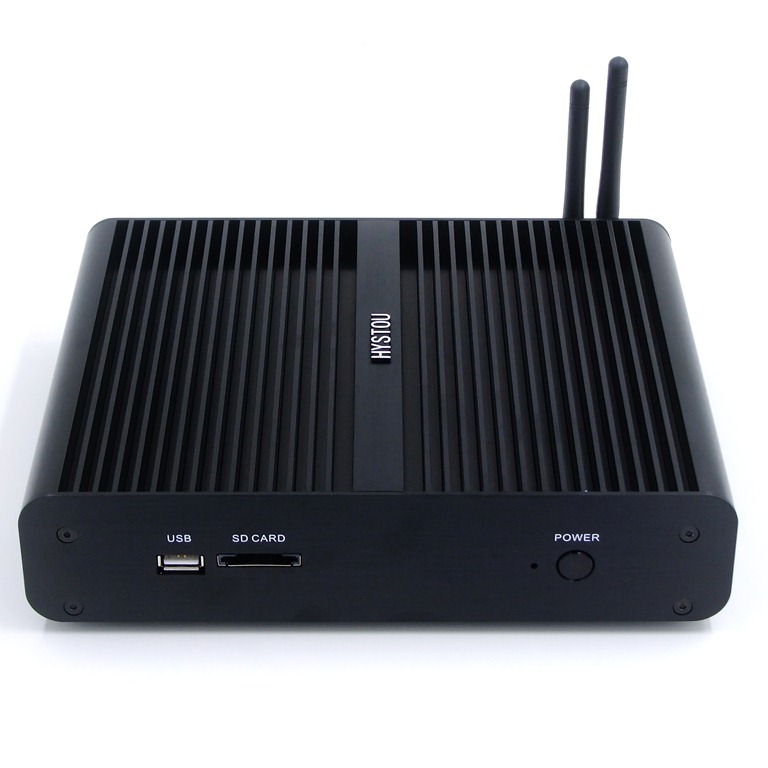

Back side:1 SD Card,1 USB2.0,1 SW.(many people use it in some area that nobody control the computer,so it need auto power on,don’t worried,this mini i7 computer Support calls on function automatically）
The 5mm aluminium alloy ruggedd surface can dissipate heat to ensure the motherboard working in high temperature,
This without Fan design NOT ONLY can avoid the motherboard and CPU dusty,But can reduce the noise effectively.

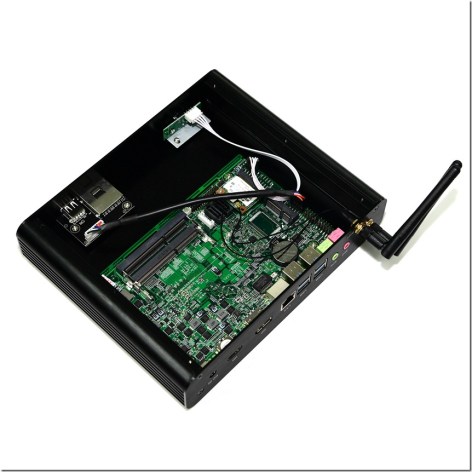

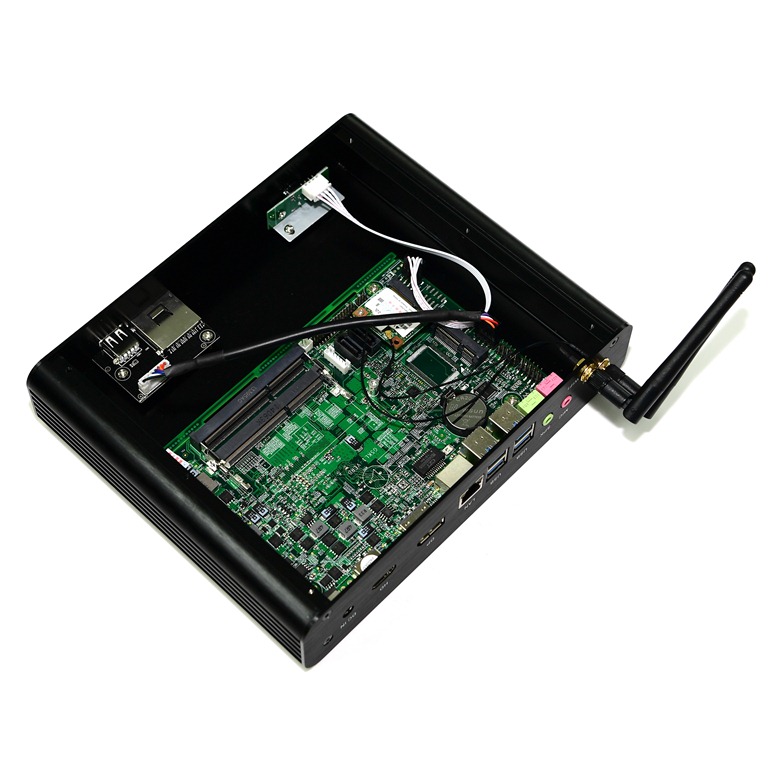

Now,let’s come to the motherboard:
1)
You can see it has one SSD channel,so you can only install one M-sata,we have 8G/16G/32G/64G/128G/256G/512G/1TB SSD for your choice,we believe it can meet most of your demand.
2)
One WiFi module,you have three choice with the WiFi module,1st: Dual-band without bluetooth，2nd: Single-band with bluetooth，3rd：Dual-band with bluetooth.Price is difference depends on the cost.Usually Dual-band is higher than Single-band,if you don’t need WiFi module please leave us message and we’ll reduce $4.5.
3)
Two RAM channel,which can install max 16G RAM,as in our store we only have 2G/4G/8G RAM for your choice,so you can only install 2*8G RAM,of course you can buy the RAM yourself as the specification shows that the max Memory support 32GB.
4)
One HDD power line and one DATA line,it means this computer Can install 1pc HDD and 1pc SSD together,support doublehard disk.
Package detail:
- -Retail package size 31.5*26*8cm, GW:2.7kg
-10 sets per exporting carton size 66*36*34cm,GW 27kg
-Package Content: 1*Mini PC; 1*power adapter; 1* Power Cord; 2*Antennas; 1*mSATA to SATA adapter; 1*SATA Data Cable and Power Cable; 1*Driver CD; 1*VESA (Should be purchased extrally)
-Warranty: 30 days free defective replacement and 3 years free repair.
- Delivery Detail:
- Shipped in 3 working days after payment
more information can be touched in below：
